Products All models CO2 Laser Cutters and Engravers JW1390-M7-S

JW1390-M7-S

This JW1390-M7-S equipped with a honeycomb and a blade worktable and with a water chiller, makes it possible to install a 100W or even 300W laser tube.

Models

Working Area : 1300*900 mm

Working Voltage : AC 220V±10%，50HZ

Control System : Ruida controller

Total power : ＜3KW

Engraving speed : 0 -1200mm/s

Request a Quote WhatsApp

Product Description

CO2 Laser Cutting Machine -1390M7-S with up and down table is a professional co2 laser engraving and cutting machine. The working area is 1300*900mm, Z axis height can be 300mm. Engraving speed is fast. Up to 1200mm/sec. The structure is very strong, which makes it more steady. This machine equipped with a honeycomb and a blade worktable and with a water chiller, makes it possible to install a 100W or even 300W laser tube. The front and back material pass-through door makes it possible to cut long materials.

Parameters

Working Area	1300*900 mm
Working Voltage	AC 220V±10%，50HZ
Control System	Ruida controller
Driver	Leadshine stepper motor, Servo motor
Machine table	Blade table, Honeycomb table (Optional)
Laser type	Glass Inner Cavity Sealed CO2 Laser Wavelength 10.6μm
Energy regulation	Pure circulating water cooling
energy regulation	0-100% stepless control, 0-100% adjustable within the software
Minimum Formed Words	≤±0.05mm
Engraving speed	0 -1200mm/s
Cutting speed	0 – 600mm/s
Minimum Formed Words	English word 1mm
Working environment	Temperature: 0-45C, Humidity 5-95%(No Condensate Water)
Total power	＜3KW
Graphic format supported	BMP, JGP, PNG, DXF, etc.

Cutting Capacity

Power	Acrylic	Wood	MDF
80 W	10mm	10mm	5mm
100 W	15mm	13mm	7mm
150 W	20mm	18mm	10mm
180 W	22mm	20mm	12mm
300 W	30mm	30mm	18mm

Machine Details

CO2 Laser Cutting Machine - JW1390-M7-S have very high conversion efficiency and are widely used in light industry. It is clean, safe and pollution-free.

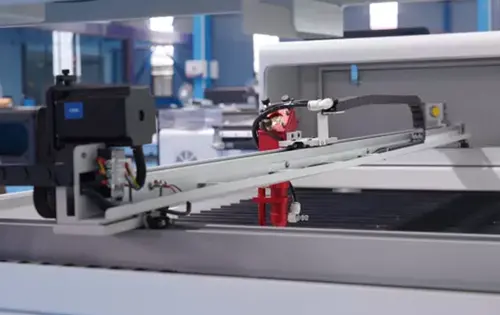

X Axis

X aixs belt transmission, and we use synchronous gear made of pure copper, which is wear-resistant and corrosion-resistant.

Ruida Controller

01 It can run completely offline, supports U disk to read and write processing files, and can modify file processing attributes; 02 Dynamic display of processing trajectory, coordinate points, progress bar, etc. 03 Panel direct operation automatic focus, support contact and non-contact; 04 Cooperate with the expansion interface of external equipment to facilitate customization requirements.

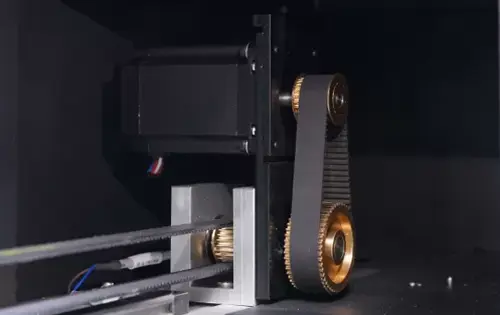

The installation of motors

Our company's motor is installed vertically. There is only one resonance point can reduce the vibration and improve cutting effect.

Lens holder

We use the thin wire optical frame made of pure copper, which is not easy to change light, makes the optical path more stable, can fix the mirror wire, and has the effect of cooling the lens quickly.

Electric lifting table

The distance from the laser head to the table on a common table is 30mm, and it can reach 260mm with the electric lifting table.

Applications

CO2 laser cutters are widely used in various industries, including automotive, aerospace, and consumer electronics, due to their ability to work with a broad range of materials, from metals and plastics to wood and acrylics.
