JW1325-M7-P Belt Trasmission

CO2 Laser cutting and engraving machine can work with most materials, such as Cloth, leather, wool, acrylic, plexiglass, board, plastic, rubber, crystal, ceramic tile, bamboo product, jade, granite, marble, resin and other non-metal materials.

Models

Working Area : 1300*2500 mm

Working Voltage : AC 220V±10%，50HZ

Control System : Ruida controller

Total power : ＜5KW

Engraving speed : 0 -1200mm/s

Request a Quote WhatsApp

Product Description

1325-M7-P Belt Trasmission- CO2 Laser cutting and engraving machine can work with most materials, such as Cloth, leather, wool, acrylic, plexiglass, board, plastic, rubber, crystal, ceramic tile, bamboo product, jade, granite, marble, resin and other non-metal materials.

Parameters

Working Area	1300*2500 mm
Working Voltage	AC 220V±10%，50HZ
Control System	Ruida controller
Driver	Leadshine stepper motor, Servo motor
Machine table	Blade table, Honeycomb table (Optional)
Laser type	Glass Inner Cavity Sealed CO2 Laser Wavelength 10.6μm
Energy regulation	Pure circulating water cooling
energy regulation	0-100% stepless control, 0-100% adjustable within the software
Minimum Formed Words	≤±0.05mm
Engraving speed	0 -1200mm/s
Cutting speed	0 – 600mm/s
Minimum Formed Words	English word 1mm
Working environment	Temperature: 0-45C, Humidity 5-95%(No Condensate Water)
Total power	＜5KW
Graphic format supported	BMP, JGP, PNG, DXF, etc.

Cutting Capacity

Power	Acrylic	Wood	MDF
80 W	10mm	10mm	5mm
100 W	15mm	13mm	7mm
150 W	20mm	18mm	10mm
180 W	22mm	20mm	12mm
300 W	30mm	30mm	18mm

Machine Details

1325-M7-P Belt Trasmission- CO2 lasers have very high conversion efficiency and are widely used in light industry. It is clean, safe and pollution-free.

Machine Bed

Heavy duty body, square tube welding, and with precision milling process，all above are ensure the stability when working and make perfect cutting effect and cutting accuracy.

Upper Smoking System

With upper smoking system can highly improve the smoking effect.

The installation of motors

Our company's motor is installed vertically. There is only one resonance point can reduce the vibration and improve cutting effect.

Ruida controller

The most recent DSP control system, USB interface, LCD screen, and the board as a whole have better ability to resist high voltage and anti-static interference.

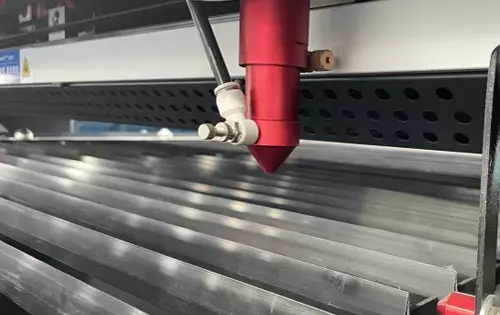

Lens holder

We use the thin wire optical frame made of pure copper, which is not easy to change light, makes the optical path more stable, can fix the mirror wire, and has the effect of cooling the lens quickly.

Applications

CO2 laser cutters are widely used in various industries, including automotive, aerospace, and consumer electronics, due to their ability to work with a broad range of materials, from metals and plastics to wood and acrylics.
