JW1325-M7-C Gear Rack Transmission

1325C CO2 laser cutting machine with gear rack trasmission of Y axis is an ideal solution for straight or curving cutting of felt, textile, cloth, leather.

Models

Working Area : 1300*2500 mm

Working Voltage : AC 220V±10%，50HZ

Control System : Ruida controller

Total power : ＜3KW

Engraving speed : 0 -1200mm/s

Request a Quote WhatsApp

Product Description

1325C CO2 laser cutting machine with gear rack trasmission of Y axis is an ideal solution for straight or curving cutting of felt, textile, cloth, leather. We can design and nest patterns on the computer or after printed, then use laser cut machine for fabric.

So this industrial laser cutter engraver is not only suitable for large-scale processing industries such as clothing, machinery, and advertising, but also meets the needs of small industries such as the model industry, crafts industry, and bamboo products’industry.

Parameters

Working Area	1300*2500 mm
Working Voltage	AC 220V±10%，50HZ
Control System	Ruida controller
Driver	Leadshine stepper motor, Servo motor
Machine table	Blade table, Honeycomb table (Optional)
Laser type	Glass Inner Cavity Sealed CO2 Laser Wavelength 10.6μm
Energy regulation	Pure circulating water cooling
energy regulation	0-100% stepless control, 0-100% adjustable within the software
Minimum Formed Words	≤±0.05mm
Engraving speed	0 -1200mm/s
Cutting speed	0 – 600mm/s
Minimum Formed Words	English word 1mm
Working environment	Temperature: 0-45C, Humidity 5-95%(No Condensate Water)
Total power	＜3KW
Graphic format supported	BMP, JGP, PNG, DXF, etc.

Cutting Capacity

Power	Acrylic	Wood	MDF
80 W	10mm	10mm	5mm
100 W	15mm	13mm	7mm
150 W	20mm	18mm	10mm
180 W	22mm	20mm	12mm
300 W	30mm	30mm	18mm

Machine Details

1325C CO2 laser cutting machine with gear rack trasmission of Y axis is an ideal solution for straight or curving cutting of felt, textile, cloth, leather.

Ruida controller

The most recent DSP control system, USB interface, LCD screen, and the board as a whole have better ability to resist high voltage and anti-static interference.

Heavy-duty bed

Square tube welding, CNC machining center finishing treatment, to prevent vibration when the machine is working and make the work more stable

Blade table

The table has been processed by a pentahedron machining center and has the characteristics of high precision and wear resistance.

Laser tube

Reci or Yongli laser tube, one of the most famous brands in China, can replace it for you for free within one year of warranty.

Lens holder

The synchronous gear made of pure copper has the characteristics of wear resistance and corrosion resistance. And it is a filament optical frame made of pure copper, which has the characteristics of not easy to change light, more stable optical path, fast heat dissipation, and can cool the lens.

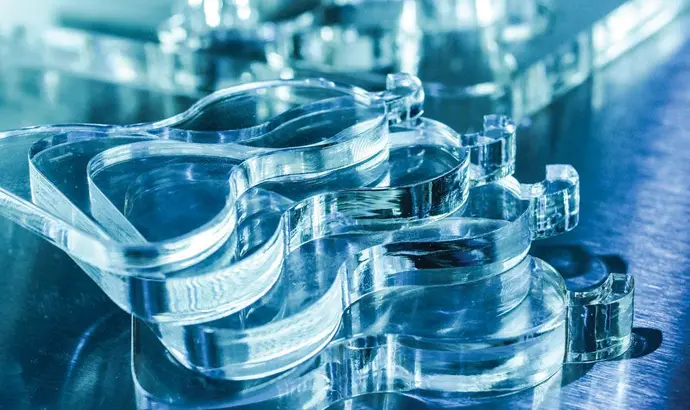

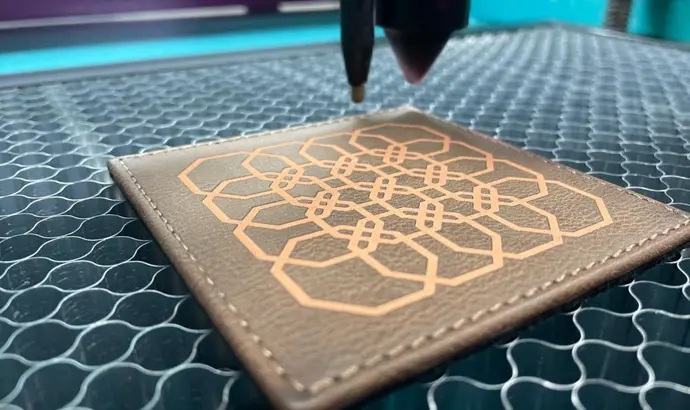

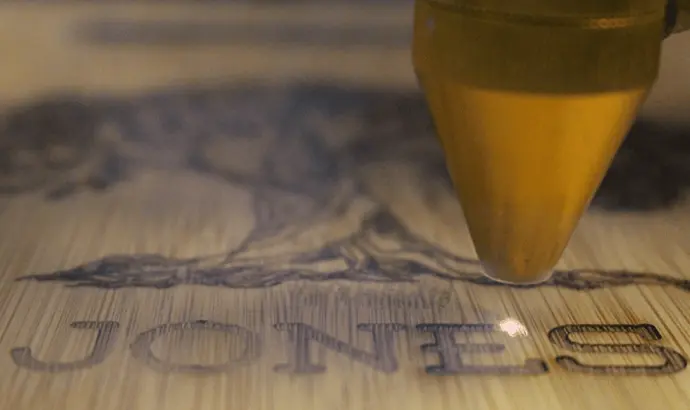

Applications

CO2 laser cutters are widely used in various industries, including automotive, aerospace, and consumer electronics, due to their ability to work with a broad range of materials, from metals and plastics to wood and acrylics.
