HS2040

Wood CNC Router- HS2040 is suitable for the processing of various complex products or a variety of processing. It can be equipped with 6, 8, 10, 12 tools according to the different production process requirements of customers.

Models

Travelling size: 1500*3000mm

Rotary axis diameter: 200mm/7.9inch

Repeatability : ±0.03mm/±0.001inch

Travelling speed : 80m/min

Working voltage : 380V/220V

Request a Quote WhatsApp

Product Description

(1) Machine body design with high strength and double driving motors of Y axis, which have more reaso-nable design, fast processing speed, easy-operated maintenance, and low fault rate.

(2) Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.

(3) Imported and high precision linear guide rails have features such as stable operation, high precision, and steady support, which prolong the service life of machines.

(4) Z-axis adopts imported ball screw with industrial level can positioning accurately and make processi-ng effects more perfect.

(5) Energy-saving vacuum absorption table function and dust collectors can protect the environment.

(6) Software has good compatibility. The machine can be compatible with various CAD/CAM designs & making software such as TYPE3, Artcam, JD, UG, MasterCAM, PowerMill, and So on.

Parameters

Spindle Power	3.5KW air cooling spindle
X,Y,Z Traveling Positioning Accuracy	±0.03/2000mm
X,Y,Z Rail and Transmission	X Y axis gear transmission, Z axis Taiwan TBI Ball Screw
Max. Working Speed	60m/min
Spindle Speed	6000-24000RPM
Drive Motors	4 sets stepper motor and driver
Working Voltage	AC 220v or 380v/ 50Hz or 60Hz/ 3 phase
Command Language	G Code
Operating System	Rich auto A11 control system
Interface	USB
Software Compatibility	Option:VCarve/VCarve Pro/UcanCAM/ArtCAM,etc.
Running Environment	Temperature: -20℃~45℃ Relative Humidity: 5%~75%

Machine Details

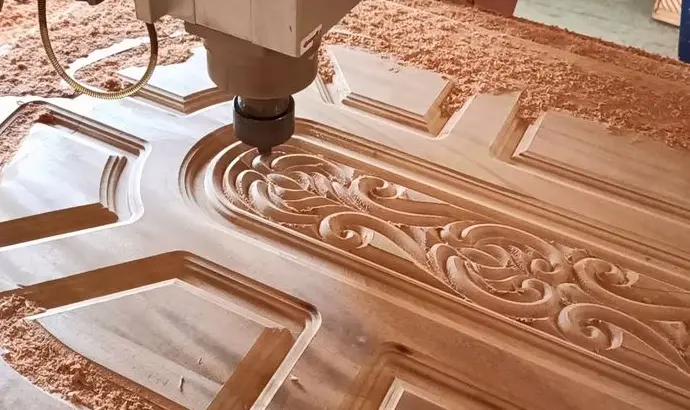

Wood CNC Router- HS2040 main function: processing cabinet door ,wooden door,solid wood furniture,panel furniture,windows,tables chairs,cupboard door,etc.

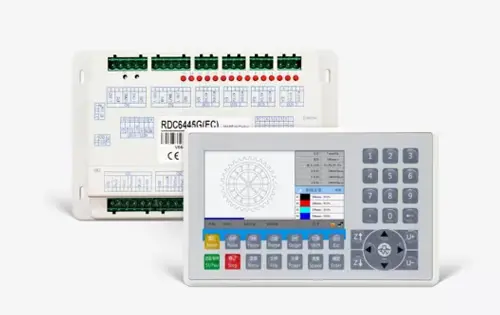

Ruida controller

The most recent DSP control system, USB interface, LCD screen, and the board as a whole have better ability to resist high voltage and anti-static interference.

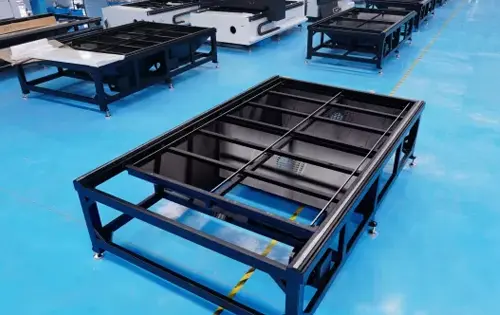

Heavy-duty bed

Square tube welding, CNC machining center finishing treatment, to prevent vibration when the machine is working and make the work more stable

Blade table

The table has been processed by a pentahedron machining center and has the characteristics of high precision and wear resistance.

Laser tube

Reci or Yongli laser tube, one of the most famous brands in China, can replace it for you for free within one year of warranty.

Lens holder

The synchronous gear made of pure copper has the characteristics of wear resistance and corrosion resistance. And it is a filament optical frame made of pure copper, which has the characteristics of not easy to change light, more stable optical path, fast heat dissipation, and can cool the lens.

Applications

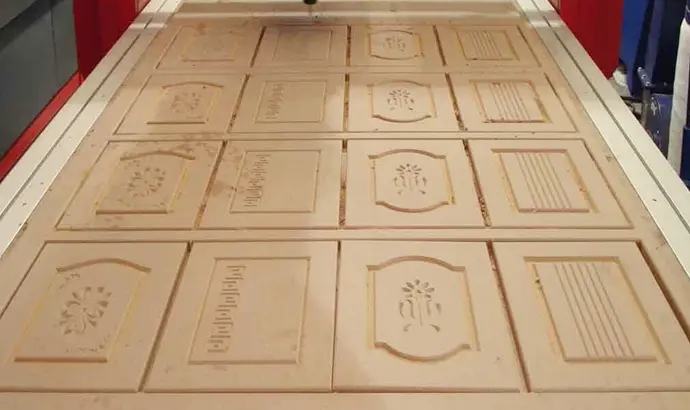

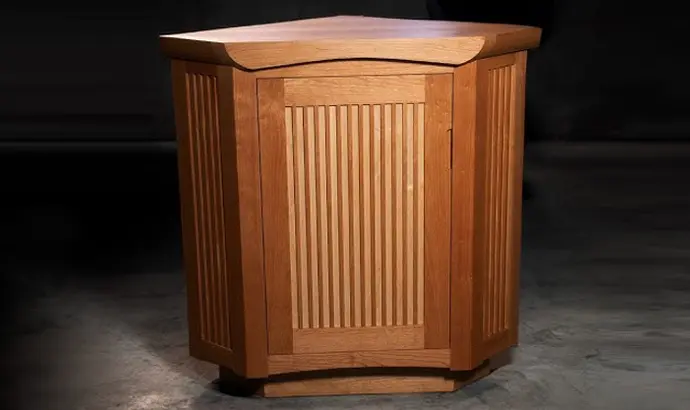

Wood CNC Router- HS2040 mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables,panelfurniture, office furniture,instrument industry, and so on.
