Products All models Metal Cutting Machine HS2030

HS2030

They format the pipeline of the advertising processing art,it solve the traditional manual processing method thoroughly.The efficiency of working increased by several times

Models

Engraving Area : 2000*3000mm

Dimension(L*W*H) : 3900*2320*1080mm

Power supply : 220V/50HZ 110V/60HZ

Spindle speed : 0-24000Rpm

Working Voltage : AC380/50HZ 3PH

Request a Quote WhatsApp

Product Description

The HS2030 lightbeam adopt light structural design,the structure has many good characters,such as good rigidity,light weight and small movement of inertia ,etc ;

Gantry structure,Yaxis adopt synchronous dual motor and dual drivers, XYZ-axis adopt linear round guide rail(linear square guide rail for your option),smooth transmission ,high running accuracy;Fast cutting speed ,high accuracy and cost at end;Working with other advertising devices together (plastic machine,pinking machine,CNC engraving machine).

They format the pipeline of the advertising processing art,it solve the traditional manual processing method thoroughly.The efficiency of working increased by several times;CNC system with high configuration,automatic arc,stable performance,arc the success rate of more than 99%;

1.CO2 laser engraving machine, able to engrave and cut various non-metals, like acrylic, double-color plate, marble, wood, MDF, plywood, textile, leather, glass, paper etc.

2.Widely applied in craft gifts, souvenir, Chinese paper cutting, advertising signs, clothes, furniture and many other industries.

3.Fast engraving and cutting speed, high precision. Can be configured with up-down lifting table, honeycomb table, rotary, etc.

4.Machine working size can be selected according to your needs. We have 600x400mm, 900x600mm, 1300x900mm, 1600x1000mm, 1300x2500mm, and so on.

Parameters

Application	Laser Engraving
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Engraving Area	2000*3000mm
Laser Type	CO2
Cooling Mode	WATER COOLING
Dimension(LWH)	390023201080mm
Laser Source Brand	Powertech
Servo Motor Brand	Leadshine
Guiderail Brand	Hiraycus
Core Components	Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Laser power	500w 650w
Laser tube	Reci SWL Yongli
Control system	Ruida Control System
Power supply	220V/50HZ 110V/60HZ
Motor	Leashine

Machine Details

The plasma power supply and the torch choose the domestic famous manufacturers which got a number of national patent technology.

Super heavy marble bed

High stability, effectively reducing vibration and ensuring precise cutting; excellent load-bearing capacity, suitable for handling large-sized and heavy metal workpieces; strong wear resistance, special surface treatment, maintaining flatness for a long time;

Bus system

Precision: Ensures precise control over the laser cutting head for high-quality results. Versatility: Supports various laser cutting processes for different materials and thicknesses.

Laser Cutting head

It adopts a multi-functional design with safety enhancement functions such as intelligent obstacle avoidance, collision protection, undervoltage alarm, closed-loop monitoring and intelligent perforation, which can automatically adjust cutting parameters for different materials.

Grating Protection

When an object or person enters the detection area of the grating, the grating protection system can respond quickly and ensure that the laser cutting machine stops immediately in any unexpected situation to protect the safety of the operator.

High performance triangular aluminum diagonal beam

The high-performance triangular aluminum diagonal beam adopts the integrated crossbeam welding process, combined with lightweight design and excellent rigidity, which can not only withstand acceleration up to 2.5G, but also effectively reduce the overall weight of the machine, improve dynamic response capability and motion stability.

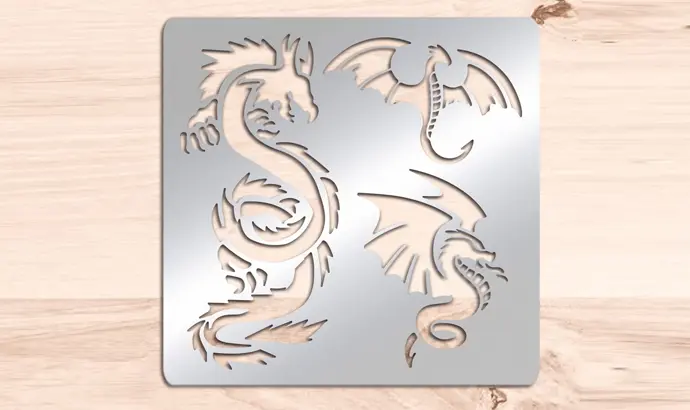

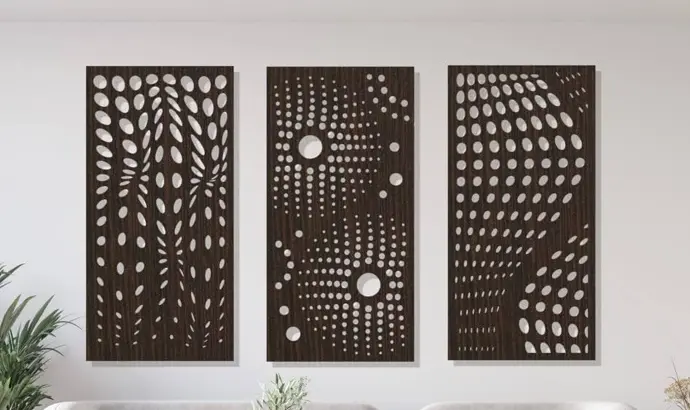

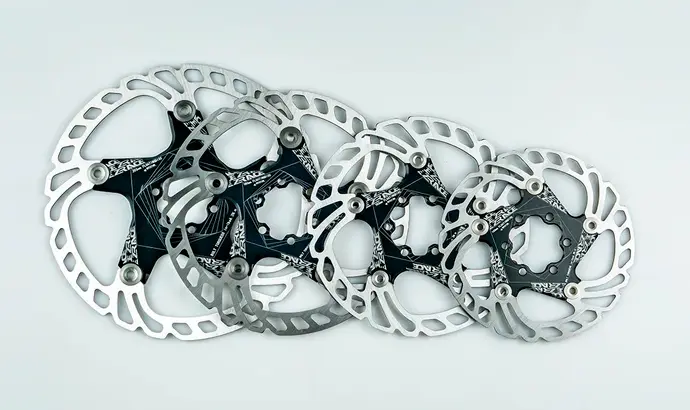

Applications

Acrylic,leather,wood,rubber,double-color board,MDF,plywood,bamboo,paper,cardboard,marble,granite,stone,glass,fabric,textile,coated metal,painted metal,anodised aluminum etc.
