Products All models Metal Cutting Machine HS1530

HS1530

The HS1530 machine features automated loading, streamlining the production process and increasing productivity, allowing for continuous operation with minimal manual intervention.

Models

Z Axis : 200mm

Max working speed : 25M/min

Max cutting speed : 10M/min

Spindle speed : 0-24000Rpm

Working Voltage : AC380/50HZ 3PH

Request a Quote WhatsApp

Product Description

Advanced Fiber Laser Technology: This 3Kw 6Kw 1530 CNC axis fiber laser cutting machine utilizes cutting-edge fiber laser technology to efficiently cut through various metals, including stainless steel, with a cutting speed of 120m/min.

High Accuracy and Precision: The machine boasts a cutting accuracy of 0.1mm, ensuring precise cuts and minimal material waste, making it ideal for applications in hotels, manufacturing plants, and building material shops.

Automatic Loading and Unloading: The machine features automated loading, streamlining the production process and increasing productivity, allowing for continuous operation with minimal manual intervention.

Multi-Format Graphic Support: The Cypcut control software supports a range of graphic formats, including PLT, BMP, DXF, AI, DST, DWG, LAS, and DXF, making it compatible with various design software and file types.

Comprehensive Warranty and Support: The machine comes with a 3-year warranty on both the core components and the entire machine, as well as provided video outgoing-inspection and machinery test reports, ensuring peace of mind for the customer.

Parameters

Model	HS-1530S	HS-1530T
Working Area	3000mm×1500mm
Laser Power	RAYCUS 1000W	RECI 1000W
Max Thickness Cutting	Stainless Steel：<6mm ; Carbon steel :10mm
Max Moving Speed	80m/min	50m/min
Reposition Accuracy	0.02mm	0.04mm
Position accuracy	0.05mm	0.07mm
X,Y,Z Axis	X,Y Axis :WMH Herion Rack and Pinion；Z axis:TBI Ball screw	X,Y Axis :YYC Rack and Pinion；Z axis:TBI Ball screw
Electrical Components	Schneider
Rail	HIWIN liner square rail
X,Y,Z axis Servo and Motor	YASKAWA Servo;STIEBER Reducer	SENCHUAN Servo ,SHIMPO Reducer
CNC Control System	2000 CYPCUT2000	AU3TECH
Laser Cutting Head Brand	Raytools	AU3TECH
File Formats	DXF/GPX/CAD/DST/DWG/DXP /PLT/AI support AutoCAD, CoreDraw software
Fixing Position	Red dot pointer、CNC Adjusting
Working Power	≤11KW
Working Voltage	220V/50Hz/60A
Working Condition	Temperature: 0-45℃, humidity: 5%-95% (No condensation)
S&A Water Chiller	Dual temperature dual control constant temperature
Machine Size （mm）	460002500018000
Machine Weight（Kgs）	3500	2200

Machine Details

The HS1530 machine features automated loading, streamlining the production process and increasing productivity, allowing for continuous operation with minimal manual intervention.

Super heavy marble bed

High stability, effectively reducing vibration and ensuring precise cutting; excellent load-bearing capacity, suitable for handling large-sized and heavy metal workpieces; strong wear resistance, special surface treatment, maintaining flatness for a long time;

Bus system

Precision: Ensures precise control over the laser cutting head for high-quality results. Versatility: Supports various laser cutting processes for different materials and thicknesses.

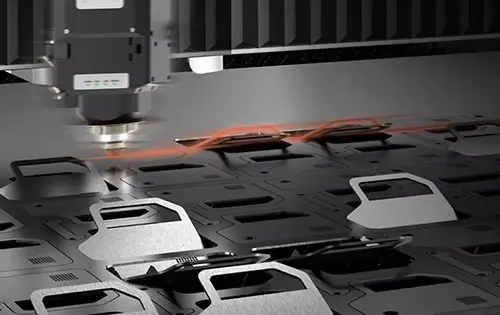

Laser Cutting head

It adopts a multi-functional design with safety enhancement functions such as intelligent obstacle avoidance, collision protection, undervoltage alarm, closed-loop monitoring and intelligent perforation, which can automatically adjust cutting parameters for different materials.

Grating Protection

When an object or person enters the detection area of the grating, the grating protection system can respond quickly and ensure that the laser cutting machine stops immediately in any unexpected situation to protect the safety of the operator.

High performance triangular aluminum diagonal beam

The high-performance triangular aluminum diagonal beam adopts the integrated crossbeam welding process, combined with lightweight design and excellent rigidity, which can not only withstand acceleration up to 2.5G, but also effectively reduce the overall weight of the machine, improve dynamic response capability and motion stability.

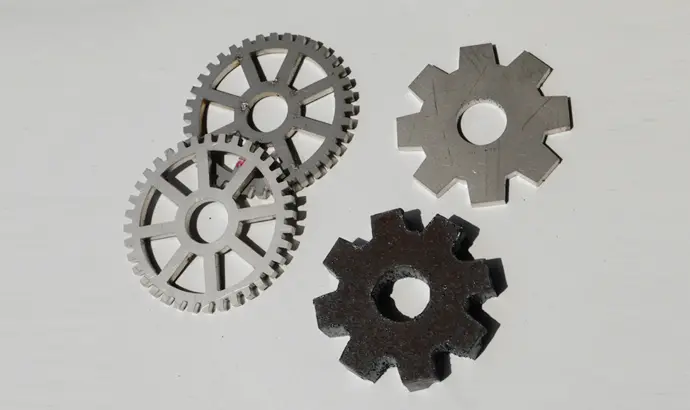

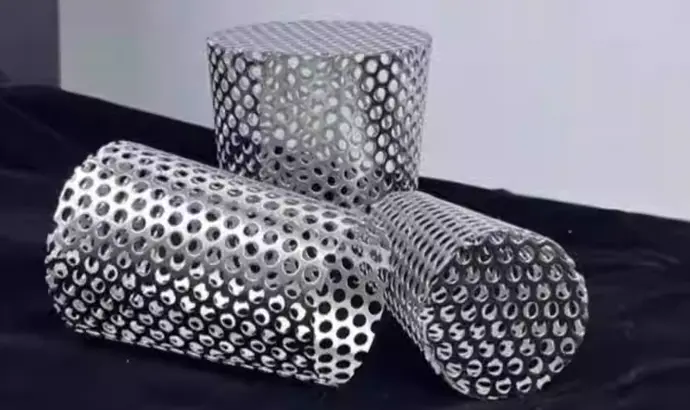

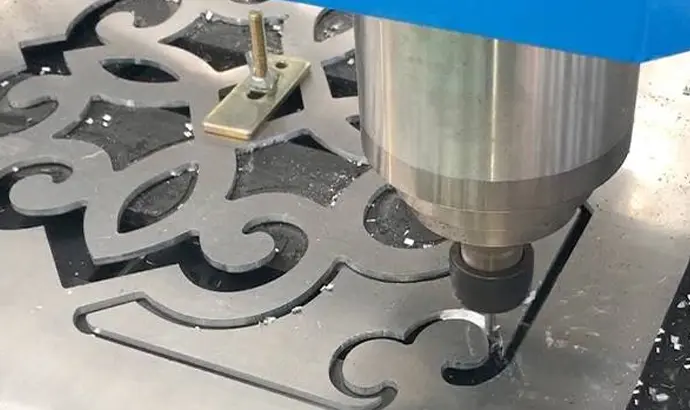

Applications

Advertising words cutting, sheet metal cutting and metal cabinet cutting, stainless steel and carbon and other kinds of metal sheet high precision cutting. Suitable for cut Stainless steel,carbon steel,alloy steel copper,brass,silicon steel,Galvanized steel sheet,Nicket Titanium alloy,inconel, Titanium alloy metal material,etc
