HS1325

All our  models uses high precision 20mm linear guide rails and guide blocks. along with model 0.1 rack for all axis

1) Z axis high precision ball screw 25mm
2) Y axis HIWIN square rail 20+helical rack pinion
3) X axis HIWIN square rail 20+helical rack pinion

Pneumatic Table Top or T-slot Clamps table:

HS1325-A’s table top is designed for the end user to easily create pneumatic solutions. The plate is 3/4″ thick and has slots spaced 2″ apart. The slots are designed to fit 1/4-20 bolt heads or nuts to allow you to fixture your parts many ways and easily.
Professional pneumatic clamps worktable more suitable for aluminum cutting working.

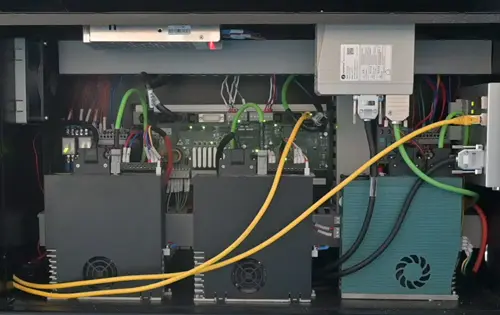

Control Box

Our HS1325-A Control box is made with a NK105 based motion control board with custom servo drives. Our control box gets accurate real time feedback of positioning keeping your system fully closed loop. The machine comes standard with DC servo motors with 1000 line encoders allowing for precision movements. NK control box connects via USB drive and runs on 64 bit computers.

Applications:

Aluminium working: Aluminium panel, three-dimensional wave board processing, handicraft fan window processing. Cutting, engraving, routing, drilling on aluminium.

Other Industry: make building models, wood mold, air wooden mold, propeller, automotive foam mold. Shaping three-dimensional surfaces such as violin, erhu musical instruments and so on.
Pattern carving, calligraphy tablet design and frame sculpture.

Parameters
