High Precision Fiber Laser Cutting Machine

High precision fiber laser cutting machine uses ball screw transmission, with high precision. It's is the best choice for making small metal parts, metal ornament designing and so on.

Models

Laser wavelength : 1070-1090nm

Working Voltage : 220V or 380V 50Hz

Rated output power : 1000w

Machine power : 9.1kw

Machine size : 1980*1930*1440

Request a Quote WhatsApp

Product Description

This small fiber laser cutter uses ball screw transmission, with high precision. It’s is the best choice for making small metal parts, metal ornament designing and so on. With the compact mechanical structure, it has a small footprint and is very suitable for home use. Although the machine is small, its processing performance is recognized by many customers. The machine adopts high-end laser source, laser head, motor, transmission device and intelligent control system and is very easy to operate.

Parameters

Model	Description
Laser type	Fiber laser
Laser working medium	Fiber
Laser wavelength	1070-1090nm
Rated output power	1000w
Output fiber core diameter	50
X AXIS	600mm
Y AXIS	600mm
ZAXIS	150mm
positioning accuracy	±0.03mm/m
Repeat positioning accuracy	±0.02mm/m
Machine size	198019301440
Voltage	220V or 380V 50Hz
Machine power	9.1kw

Machine Details

The machine adopts high-end laser source, laser head, motor, transmission device and intelligent control system and is very easy to operate.

Electrical box

The wiring of our electric box is neatly planned,and it is easy to identify by using different colors.

FScut controller

A high-performance open-loop laser control system, widely used in the field of metal and non-metal laser cutting, it can easily produce and process advertising characters, supports perforation cutting of medium-sized plates, and comes with simple layout, improving plate utilization and reducing processing time during the cutting process.

XY axis ball screw transmission

XY axis ball screw drive to improve accuracy.

Dorna servo motor

Applicable power 0.1kw-3kw, up to 6000RPM, up to 3.5 times overload capacity, 17bit single-turn absolute value magnetic encoder, equipped with 23bit support, ip67 high protection capability.

MAX Laser

Main features: (1) High-quality laser output (2) High power and high efficiency (3) High reliability and long life (4) Compact, sturdy packaging (5) Extended programming interface.

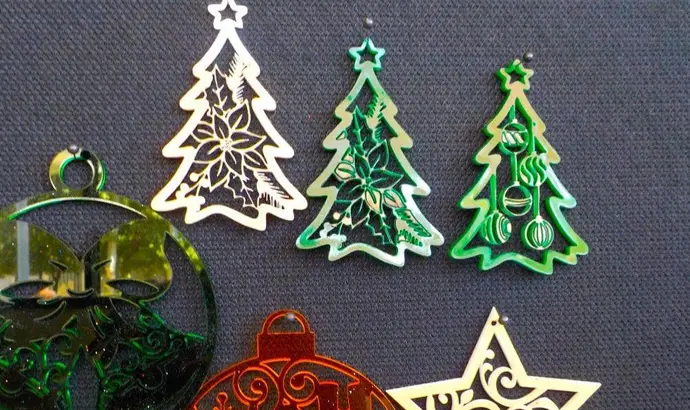

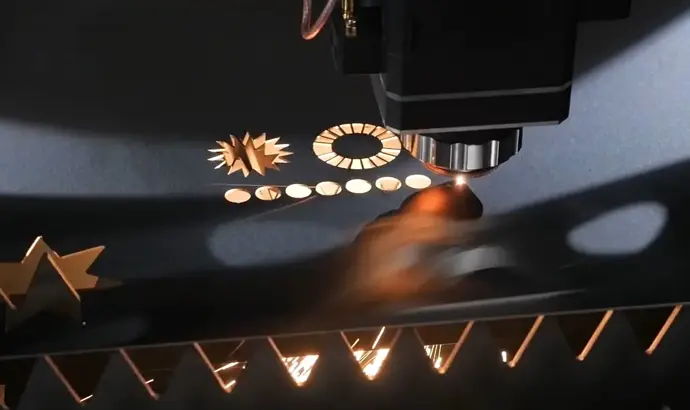

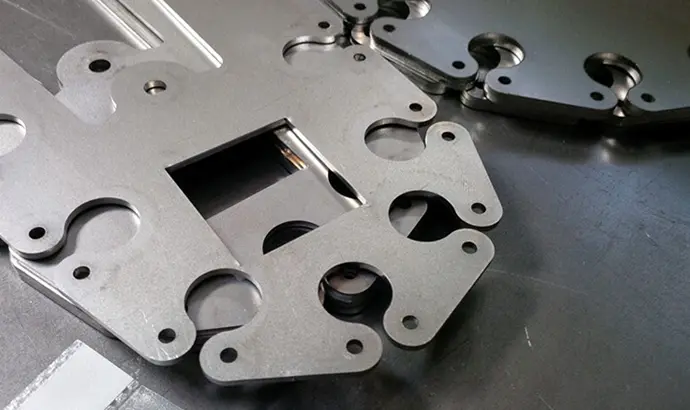

Applications

This small fiber laser cutter is suitable for engraving cutting wood, plastic, MDF, glass, leather, rubber, laminate and other non-metallic materials.
